Micropump Mechanism
Application ID: 21171
Micropumps are key components of microfluidic systems with applications ranging from biological fluid handling to microelectronic cooling.

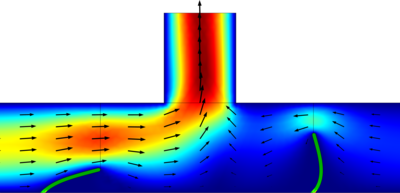

This model simulates the mechanism of a valveless micropump, that is designed to be effective at low Reynolds numbers, overcoming hydrodynamic reversibility. Valveless pumps are often preferred in microfludic systems because they minimize the risk of clogging and are gentle on biological material.
The Fluid-Structure Interaction interface is used to solve for the flow of the fluid and the associated deformation of the structure. In addition, the Global ODEs and DAEs interface is used to demonstrate how to perform a time resolved integration of the total flow throughout the pumping cycle.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the MEMS モジュール, マルチボディダイナミクスモジュール, or 構造力学モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
