Bike Frame Analyzer
Application ID: 35101

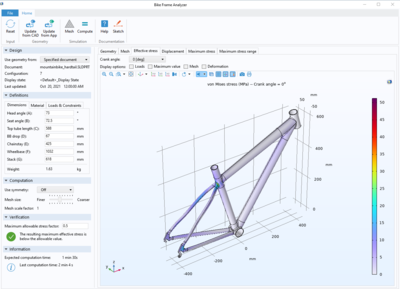

The reliability of a bike frame can be estimated by analyzing the structural stress subjected to different load cases. This app leverages LiveLink™ for SOLIDWORKS® to interactively update the geometry while computing stress analyses. Using this app, you can easily test different configurations of a bike frame for different cases of dimensions, material, and loads. The app computes the stress distribution and the deformation of the frame, based on the structural dimensions, materials, and loads/constraints of the bike frame.
To easily keep track of the analyzed CAD design when the geometry in the app is updated from a SOLIDWORKS® document, the app displays CAD file information, such as the date and time of the last update, as well as the document name, its configuration, and display state. You can manipulate the frame geometry's dimensions, such as head angle, seat angle, top tube length, base bottom drop, the chainstay, wheelbase, and stack. You can also define material properties to be aluminum, steel, titanium, or something that you specify. Load cases and constraints can also be specified.
The app allows you to set a maximum allowable stress factor where a control value for the equivalent stress is computed for a given load case.
This app demonstrates the following:
- Connecting an app to a SOLIDWORKS® session
- Setting a maximum allowed value which the solution is compared to
- Selecting predefined or user-defined materials
- Changing boundary conditions with a combo box using methods
NOTE: In order to run this app, you need both LiveLink™ for SOLIDWORKS® and the Structural Mechanics Module.

この application の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- LiveLink™ for SOLIDWORKS® and
- either the MEMS モジュール, マルチボディダイナミクスモジュール, or 構造力学モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
