Radio Frequency Quadrupole Ion Trap
Application ID: 129901
A radio frequency quadrupole ion trap utilizes a radio frequency quadrupole (RFQ) in order to trap an ion beam. A continuous high energy ion beam is first cooled and converted into a spatially confined bunch, which can then be released with minimal heating of the beam. The device is also commonly referred to as a Paul trap where an oscillating AC voltage is used to contain the beam radially. The axial confinement of the particles is achieved by using a DC voltage along the length of the quadrupole designed to create a potential well that can contain the beam.
The RFQ is often used to guide particle beams with kinetic energies in the order of 10-100 eV. In order to efficiently trap these particles, the kinetic energies are reduced through a process called buffer-gas cooling. The high energy charged beam is made to pass through a buffer gas, often consisting of a low molecular mass inert gas such as He or Ar. The highly energetic ions undergo elastic collisions with the light and slow moving buffer gas molecules, thus reducing the overall kinetic energy of the particle beam. The RF electric fields help contain the collisional scattering in the radial direction.

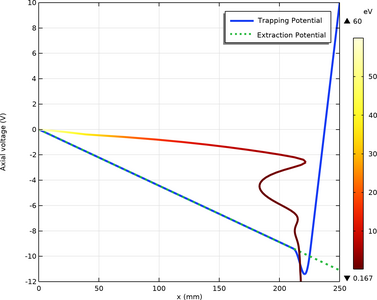

The device can be operated in two configurations: trapping and extraction. In the trapping configuration, the axial DC voltage contains a minima which helps in trapping the cooled beam. The cooled beam is therefore collected near the minima as a bunch of particles. This bunch can then be extracted by altering the DC voltage to help guide the beam out of the quadrupole. This two-stage operation thus allows for a continuous beam to be converted to a pulsed beam.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- 粒子追跡モジュール and
- either the AC/DC モジュール, MEMS モジュール, or RF モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
