Rotating Microwave Oven with Phase Transition
Application ID: 130711

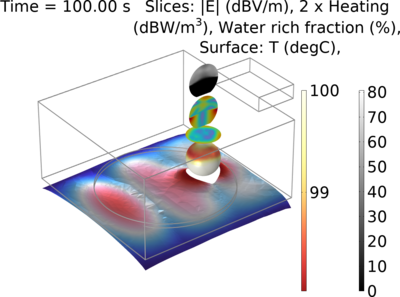

A spherical water-rich load (potato) is placed on the rotating glass tray of a microwave oven some distance from the center of rotation. 1 kW of 2.45 GHz microwave power is applied via a waveguide feed. The plate rotates at 9 degrees per second. The heat transfer model involves the transition from a water-rich phase to a dehydrated phase with the corresponding changes in material properties and microwave losses. In the simulation, the rotation is performed step-wise with one step every 0.25 s and the mesh is tailored to assure mesh conformity in each angular step. The model makes use of the Phase Change Material feature that is readily available in the Heat Transfer in Solids interface. The step-wise motion that, in combination with the tailored structured mesh on the sliding mesh boundaries, assures conforming meshes, is implemented using the Events interface in COMSOL Multiphysics.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- RF モジュール and
- either the 伝熱モジュール, 多孔質媒体流れモジュール, or 地下水流モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
