Biodegradation of a Magnesium Stent
Application ID: 131521
Biodegradable metallic biomaterials such as Magnesium (Mg) are gathering attention for biomedical applications due to their favorable properties.

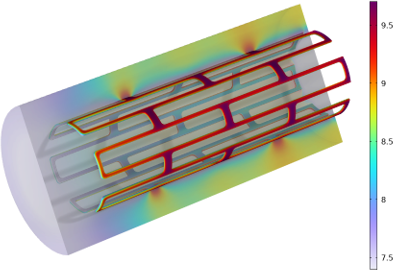

The present model simulates dissolution of a Mg stent in a blood vessel. Due to the circumferential symmetry, only one-twelfth of the actual geometry is used in the model.
The Level Set interface is used in a first study to model the geometrical changes of the stent when subject to a local constant dissolution rate over time.
The resulting stent shapes at various stages of dissolution are then used in a second study in order to calculate the concentration of Mg ions in the tissue and vessel surrounding the stent, and the corresponding pH levels.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the バッテリデザインモジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, or 燃料電池&電解槽モジュール and
- either the CFD モジュール, 腐食解析モジュール, 電気めっきモジュール, マイクロフルイディクスモジュール, ポリマー流れモジュール, or 多孔質媒体流れモジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
