Headphone on an Artificial Ear
Application ID: 74271

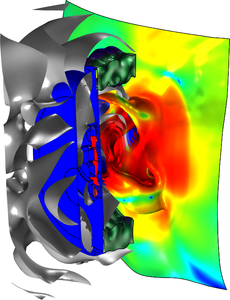

Headphones are closely coupled to the ear, and so it is not possible to measure their sensitivity in a classical acoustic free-field setup used for loudspeakers. The measurement requires the use of artificial heads and ears to accurately represent the usage conditions. This model shows the coupling of a circumaural headphone to a generic artificial ear. The model uses the Poroelastic Waves physics interface to model the foam. The built-in Interior Perforated Plate model is used to represent perforates and meshes in the headphone casing. The artificial ear is coupled to a simplified ear canal and the impedance of the ear drum is specifically considered. An equivalent electrical circuit is used to model the driver in the headphone.
![](/model/image/74271/big.png)
この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- 音響モジュール and
- either the AC/DCモジュール, バッテリデザインモジュール, MEMS モジュール, プラズマモジュール, RFモジュール, or 半導体モジュール
アプリケーションのモデリングに必要なCOMSOL®製品の組み合わせは, 境界条件, 材料特性, 物理インターフェース, 部品ライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償評価ライセンスをご利用ください. COMSOL セールスおよびサポートチーム](/contact) では, この件に関するご質問にお答えしています.
