Multicomponent Tubular Reactor with Isothermal Cooling
Application ID: 20481

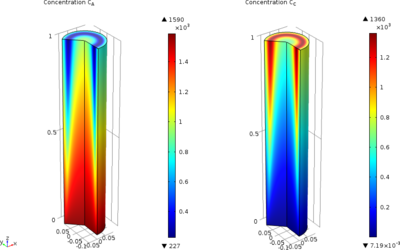

This application uses the Chemical Reaction Engineering Module to study an elementary, exothermic, irreversible reaction in a tubular reactor (liquid phase, laminar flow regime). To keep its temperature down, the reactor uses a cooling jacket with a constant coolant temperature. The steady-state behavior of the reactor is investigated.
The application visualizes how the Chemistry and Transport of Diluted Species interfaces, as available with the Chemical Reaction Engineering Module, can be used for simple modeling and investigation of complex reaction kinetics and multicomponent mass transfer.
The setup here can be compared to the Tubular Reactor with Nonisothermal Cooling application using the COMSOL Multiphysics base package that does not have the in-built multicomponent reaction kinetics and mass transport formulations.
This model solves the example by S. Fogler in Elements of Chemical Reaction Engineering 4th ed., (Prentice Hall, 2005), p. 557 (Example 8-12 Radial Effects in Tubular Reactor)

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the バッテリデザインモジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気放電モジュール, 電気化学モジュール, 電気めっきモジュール, or 燃料電池&電解槽モジュール and
- either the バッテリデザインモジュール, CFD モジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, 燃料電池&電解槽モジュール, マイクロフルイディクスモジュール, ポリマー流れモジュール, 多孔質媒体流れモジュール, or 地下水流モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
