Packed Bed Reactor
Application ID: 238
One of the most common reactors in the chemical industry, for use in heterogeneous catalytic processes, is the packed bed reactor. This type of reactor is used both in synthesis as well as in effluent treatment and catalytic combustion.
The reactor consists in essence of a container filled with catalyst particles. These particles can be contained within a supporting structure, like tubes or channels, or they can be packed in one single compartment in the reactor.

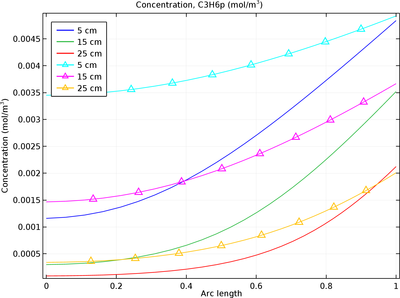

This application presents an approach for studying coupled macro- and microscale mass balances in reactors packed with catalyst. The model requires two geometries, one for each system scale, to compute the concentration profiles of the reacting species along the packed bed reactor as well as within catalyst pellets.

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the バッテリデザインモジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, or 燃料電池&電解槽モジュール and
- either the バッテリデザインモジュール, CFD モジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, 燃料電池&電解槽モジュール, マイクロフルイディクスモジュール, ポリマー流れモジュール, 多孔質媒体流れモジュール, or 地下水流モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
