Solute Transport in Prescribed Groundwater Flow, Preset Model
Application ID: 35521
Predicting the transport of solutes that move with subsurface fluids is of general interest in environmental engineering and geosciences. Solutes may not only be pollutants but also artifical tracers added to the groundwater for investigation purposes.

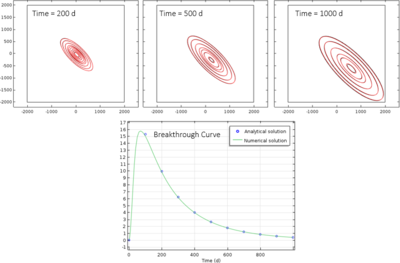

This model tracks a solute over an area of 16 square km during 1000 days in a prescribed ground water flow accounting for longitudinal and transversal dispersivity. The study uses a benchmark situation published by Zimmermann et al. (2001) and is compared to an analytical solution of Wilson and Miller (1978).

この model の例は, 通常次の製品を使用して構築されるこのタイプのアプリケーションを示しています.
ただし, これを完全に定義およびモデル化するには, 追加の製品が必要になる場合があります. さらに, この例は, 次の製品の組み合わせのコンポーネントを使用して定義およびモデル化することもできます.
- COMSOL Multiphysics® and
- either the バッテリデザインモジュール, CFD モジュール, 化学反応工学モジュール, 腐食解析モジュール, 電気化学モジュール, 電気めっきモジュール, 燃料電池&電解槽モジュール, マイクロフルイディクスモジュール, 多孔質媒体流れモジュール, or 地下水流モジュール
アプリケーションのモデリングに必要な COMSOL® 製品の組み合わせは, 境界条件, 材料特性, フィジックスインターフェース, パーツライブラリなど, いくつかの要因によって異なります. 特定の機能が複数の製品に共通している場合もあります. お客様のモデリングニーズに適した製品の組み合わせを決定するために, 製品仕様一覧 を確認し, 無償のトライアルライセンスをご利用ください. COMSOL セールスおよびサポートチームでは, この件に関するご質問にお答えしています.
